Computer Cut-off Corrugated Cardboard Helical Knife Cutter-- High Presicion Four Direct Drive

COMPUTER CONTROLLED HELICAL KNIFE CUT-OFF FOR HIGH SPEED CORRUGATED CARDBOARD PRODUCTION LINE

Features: Highly integrated AC servo computer control system. The helical knife is independently servo controlled, and the new serrated knife has a paper cutting accuracy of ± 1.0mm. It is equipped with a power-saving device system that can store the feedback electrical energy generated by normal braking in the energy-saving module of the high-voltage capacitor, so it can save more than 30% of electricity compared to general systems.

(1) The helical knife cross cutting machine is controlled by an independent unit system controlled by a computer. The computer system adopts an AC servo control system with one thousandth of a second as the control unit, which has fast tracking speed, short response time, high cutting accuracy, and can overcome the speed limitation of cutting paper size.

(2) Servo motor drive, higher transmission efficiency, faster response, precision gear expansion sleeve connection, gapless transmission,

Ensure precise engagement of the blade.

(3) The independent motor for paper entry and exit adopts frequency conversion to automatically adapt to the speed of the cardboard, with high efficiency and low noise.

(4) Floor standing structure, good seismic resistance, and safer protective net.

(5) Paper cutting range: 500 mm-9999mm.

(6) Cutting accuracy: ± 1.0mm at steady speed.

(7) Precision adjustable gapless gears ensure precise meshing of the cutting edge, and the gear surface is treated with carburizing for hardness

Achieve HRC42-52.

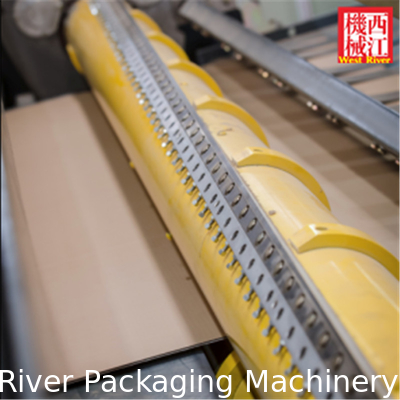

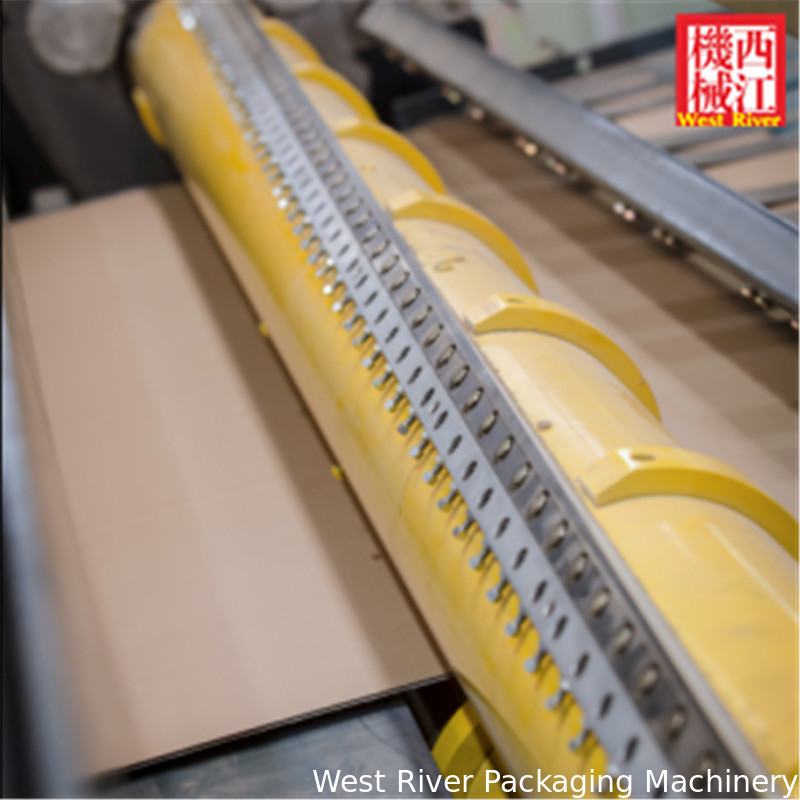

(8) Adopting a new type of serrated knife.

(9) The computer automatically tracks the running speed of the cardboard to ensure synchronization.

(10) Due to the use of highly integrated servo drives, the failure rate is greatly reduced. A power-saving device system is installed, which can store the feedback electrical energy generated by normal braking into energy-saving modules such as high-voltage capacitors and AC permanent magnet servo motors. Therefore, it can save more than 30% of electricity compared to general systems.

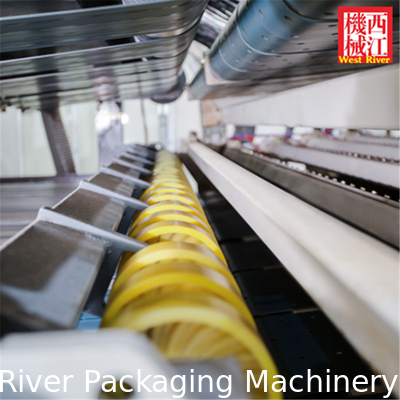

(11) The paper feeding adopts a roller structure to prevent the cardboard from jumping and make the speed measurement more accurate.

(12) The paper output adopts a suction form to prevent the cardboard from deviating, making the cardboard transportation more smooth and neat.

(13) When the cutting length of the paper is as short as 500 mm, its speed shall not be less than 60% of the maximum speed.
