Single Layer NC servo CUT OFF Machine For Corrugated Cardboard Line

Détails sur le produit:

Lieu d'origine:	CHINE
Nom de marque:	West River
Certification:	ISO, CE
Numéro de modèle:	QS

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	100000
Détails d'emballage:	8 récipients
Délai de livraison:	70days
Conditions de paiement:	L / C, T / T
Capacité d'approvisionnement:	100 ensembles par an

Contact

Description de produit détaillée

Largeur:	1600-3300 mm	Vitesse:	150-400m / min
Conduire:	SERVO FULLE	Option:	Couche simple ou double
Nom:	Machine ondulée	Matière première:	Matériau en papier artisanal (pour onduir)

Product Description

1. Model: CUT OFF MACHINE

2. Max. Speed: 150-250m/Min

3. Standard: GB

4. Certification: ISO9001, CE

SINGLE OR DOUBLE Layer NC Cut Off Machine:

In-feed Roller is equipped with Sun_Wheels.
The Computer Controlled Helical Knife CUT-OFF MACHINE, is controlled by independent unit system, the computer system is selected with Alternate Current(AC) servo control system of UK CT, more strong of cutting effect, one-thousandth second as a control unit, can trace with fast speed, with short response time, high precision for cutting, might overcome the limit of cutting length to speed.
The knife shaft is tested and modified by dynamic balance, with windage adjustable bearing, higher rotation precision, more stable for cutting cardboard.
One step of gear drive, higher drive efficiency, faster response, connected with precise gear expanding bush, drive without clearance, ensure the joggle of the knife edges precisely.
The speed of independent Inlet and outlet motors are adjusted by frequency conversion to be suitable to the speed of cardboard automatically. Synchronization belts drive, high efficiency, less noise.

TECHNIQUE DATE:

Model	QS
Design Speed	150-250m/min cutting speed
Width	1200-2500mm (option)
Knife	Helical Knife
Driver	Servo Drive
OPTION	Single or Double Layer Speed: 150m/min, 200m/min, 250m/min

West River brings different technologies for your options, our mature and more than 40 years of long history technologies accumulation ensures our quality and wide different technology choice for our customers.

Product Show

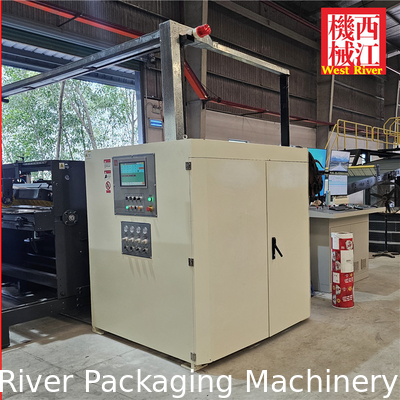

Single Layer NC servo CUT OFF Machine For Corrugated Cardboard Line 0

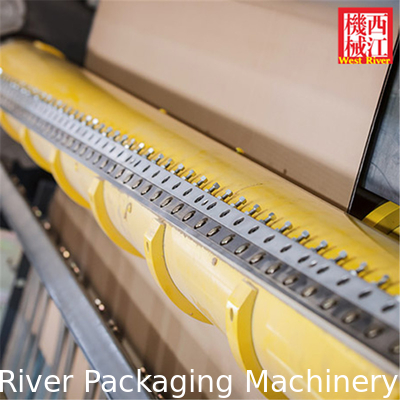

Single Layer NC servo CUT OFF Machine For Corrugated Cardboard Line 1

(SIngle Or Double Layer Option)

WEST RIVER Provide Full Carton Plant Turn-key Design Solution

Our profession engineers are able to design the complete factory layout according to your requirements.

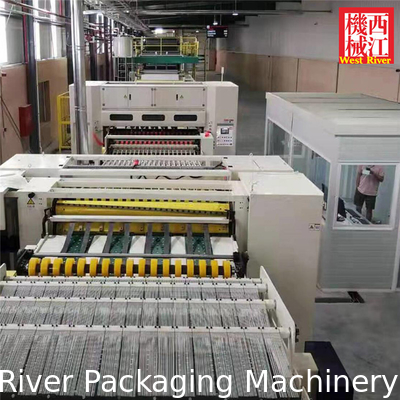

Single Layer NC servo CUT OFF Machine For Corrugated Cardboard Line 2

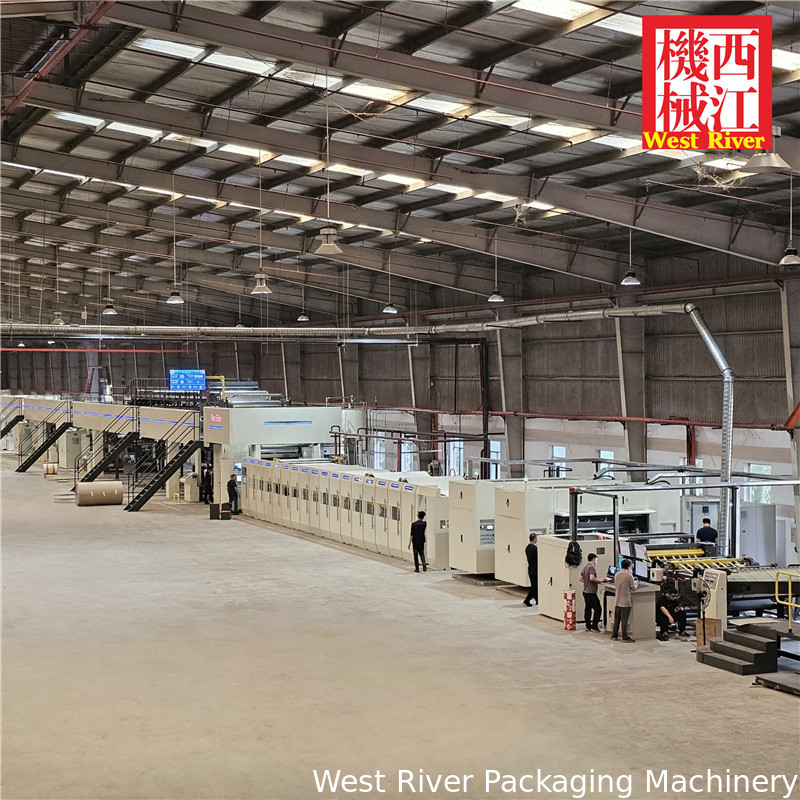

Single Layer NC servo CUT OFF Machine For Corrugated Cardboard Line 3

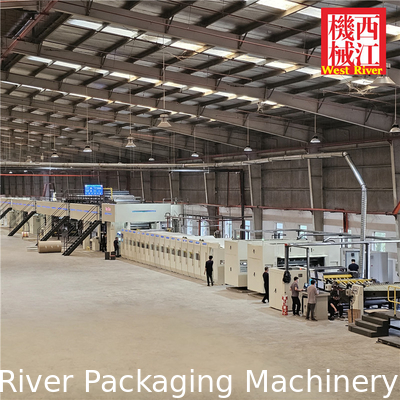

Single Layer NC servo CUT OFF Machine For Corrugated Cardboard Line 4

Finish products

Our equipment help you to produce high-quality cardboard and carton.

Single Layer NC servo CUT OFF Machine For Corrugated Cardboard Line 5

In the past couple of decades we have always insisted on high quality, our products are exported to more than 90 countries.

Single Layer NC servo CUT OFF Machine For Corrugated Cardboard Line 6

West River Packaging Machinery was founded in 1954. The first semi-automatic single facer of China was born at our factory in 1978. It was the prelude of corrugated packaging industry.

Our engineers are available to service overseas

We attend to the trade fairs all over the world

Single Layer NC servo CUT OFF Machine For Corrugated Cardboard Line 7

You are always welcome to visit our factory

Single Layer NC servo CUT OFF Machine For Corrugated Cardboard Line 8

We adhere to the "quality first, reputation first" business purposes, and continuously forgeahead.

FAQs

1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer.

2Q: Where are your factory located in ?
A: Our factory located in Zhaoqing city, Guangdong, China

3Q: Where is the nearest airport of factory ?
A: The nearest airport is Guangzhou Baiyun International airport. It take 1.5 hours from Guangzhou to Zhaoqing factory by car. We are glad to pick you up at the airport.

4Q: What is your business process?
A: Talk about requirements, confirm details, sign a sales contract, pay for deposit, arrange production, test machines, buyer pay for the balance payment, arrange shipment.

5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution
We have professional technicists to supervising to production
Our professional department to examine about every production process

6Q:What can you do if the machine broken?
A: The warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we can negotiate to the problems, and we supply the technical support for the whole life of the equipment.
