Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System

Détails sur le produit:

Lieu d'origine:	Guangdong
Nom de marque:	West RIver
Certification:	ISO9001:2000 CE
Numéro de modèle:	Convoyeur de série WJ

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	10,000
Détails d'emballage:	Récipient
Délai de livraison:	120 jours
Conditions de paiement:	TT, L / C
Capacité d'approvisionnement:	25 ensembles
Quantité de commande min:	1 set

Contact

Description de produit détaillée

Largeur:	1200-3300 mm	Vitesse:	100-400 m/min
Système de contrôle:	Peut contrôler le système de servomoteur	Nom:	Machine ondulée
Matière première:	Matériau en papier artisanal (pour onduir)
Mettre en évidence:	Corrugated Singlefacer machinery , Corrugated Cardboard machinery , Carton Machinery

AUTOMATIC CONTROLLED PAPERBOARD CONVEYER, AUTOMATIC STACKER

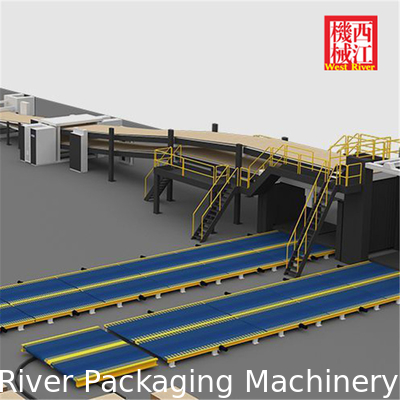

Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 0

The down stacker forms an integral part of the corrugator and is installed after the cutoff knife. Its function is to receive the individual board, cut from the cutoff knife and transport them to the stacker bay lift to stack up. The boards from the cutoff knife are sucked down via vacuum and brushes section and shingled onto the conveyor belts. Once the number of sheets in working order is reached, the belts will accelerate to create a gap between the two consecutive stacks. The differential speeds of the conveyor belts allows sheets to be transported into the stacker lift bay, stacked up and discharged. The stacker cycle-time is precisely calculated that the stacker lift bay is in time to receive the sheets of the next stack.

Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 1

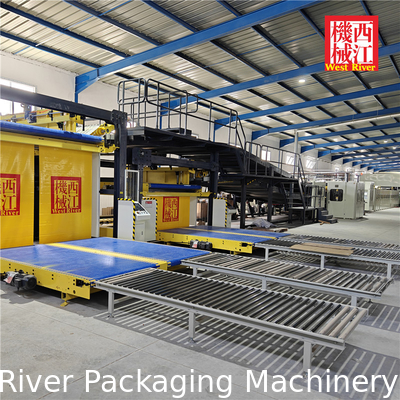

Double Layer Conveyer Stacker

Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 2

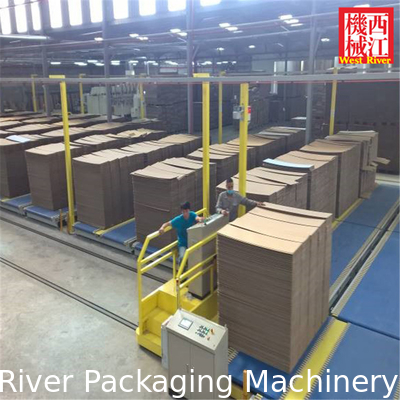

Single Layer Conveyer Stacker

Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 3

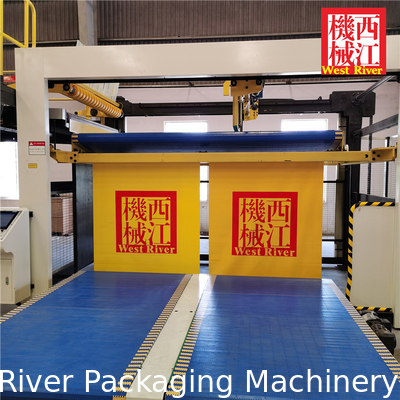

Servo Motor control Under WEST RIVER Beckhoff System

Valid width: 1200mm-3300mm

Design speed: 100M/min-400M/min

Corrugation Type: 3Py, 5Ply, 7Ply

Flute type: A, C, B, E, F, G Flute

Conveyor Stacker for Fully Automatic Corrugated cardboard production line Cardboard Logistic System 4

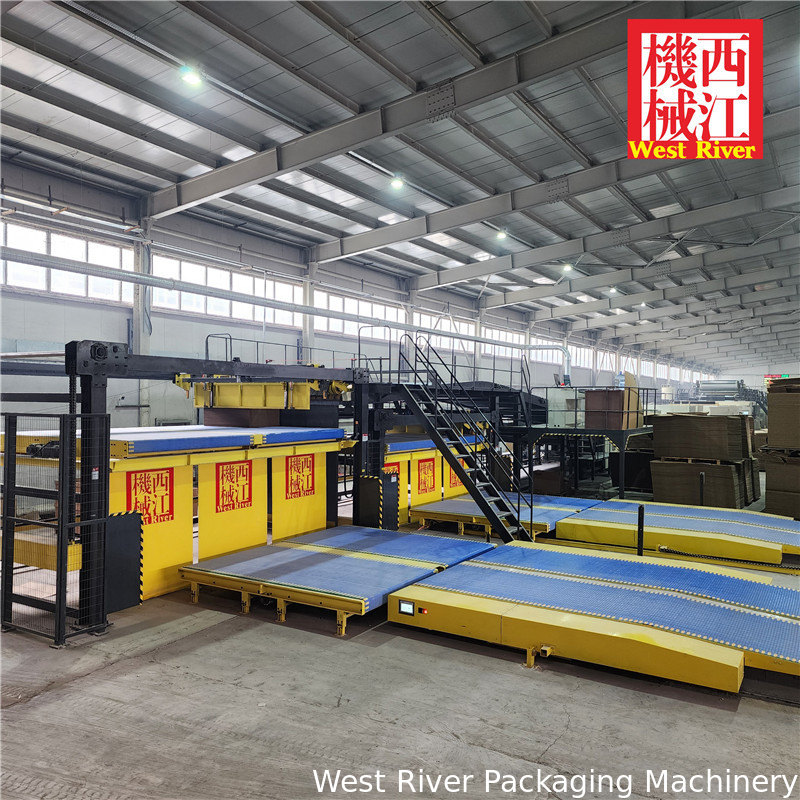

Connection With Cardboard Logistics sytem(customized design)

Guangdong Zhaoqing WEST RIVER Packaging Machinery Co., Ltd.

As the first professional company engaged in corrugated cardboard and carton machinery in China, it was founded in 1954. Since 1978, it has manufactured the first semi-auto corrugated machinery in China. And from 1999, we began to cooperate with famous Germany company to produce High-speed Fully automatic corrugated cardboard production line for Asian Market. Its vision is to create customized solutions for customers around the world through the continuous efforts of our team and to achieve the sustainable development of Century Old Company.

We can provide comprehensive factory planning and design solutions, equipment manufacturing, installation and debugging, as well as technical personnel training for not matter of NEW TURN-KEY Project Design or Old Factory Upgradation Solution. We can achieve your long-term and sustainable development through our professional technology! In order to provide you with more accurate equipment solution and quotation, please send us your specific requirements of the equipment or investment requirements, we will provide you full corrugation industrial design solution for you and all the in-depth technique consultation.
