Fixed Type SINGLE FACER(outer vacuum type)

Tungsten Carbide Option

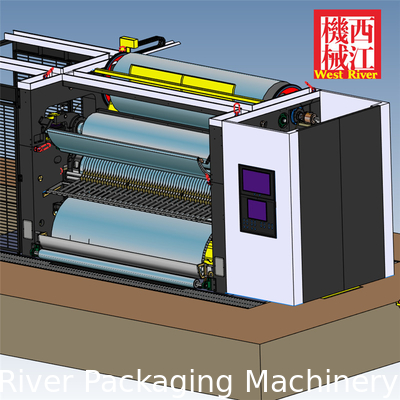

Equipped with outer vacuum structure. There is a pair of corrugated rollers to make a paper sheet into one corrugated paper, then, agglutinated with another paper sheet into one single Face cardboard. Different flutes needs different pairs of corrugating rollers to make.

Flute Type: UV, flutes A,B, C ,BC,D,E , two of them can be selected by Clients.

Flute, H= mm;

• Diameter of the corrugated Roller is Φ260mm,made of material 48CrMo alloy metal,heat treatment with high frequency,precise grinding, surface rigidity is over HRC55-60.
• High temperature grease for Lubricating.
• The surface of Glue roller is plated with chrome, scored 24 fine thread(mesh)/inch,,make glue feeding well-proportioned.
• Main drive is driven by electro-magnetic speed adjustment motor and Chain Drive..
• The thickness of glue can be tiny adjusted by electro-motion, the clearance is digital displayed.
• The gluing width is adjusted by Electro-motion.
• Pressure of steam: 1.1-1.2Mpa.
• The high pressure Fan is equipped with Silencer.
• The glue feeding device can be moved by Electro-motion.

WEST RIVER has extensive experience in corrugated machinery manufacturing, and we provide turn-key design solutions for global users from design, manufacturing, installation and commissioning to final operation training. Our equipment has been exported to Australia, Finland, Lithuania, France, Italy, Romania, Greece, the Middle East, Africa, the Americas, and Southeast Asia... around the world. It was established in 1954 and produced China's first semi-automatic corrugated equipment. In the development process of China's corrugated box industry, we also formulated the Chinese National Corrugated Box Standard, making contributions to the world packaging industry with our quality and innovative equipment.

If you have any requirements of our machine, feel free contact us any time!
