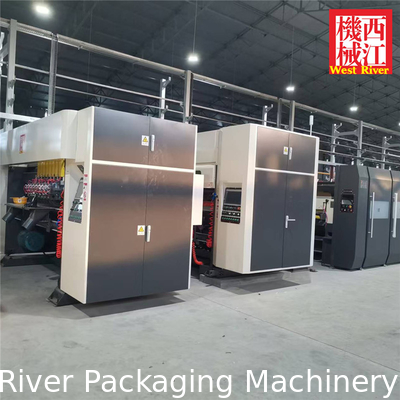

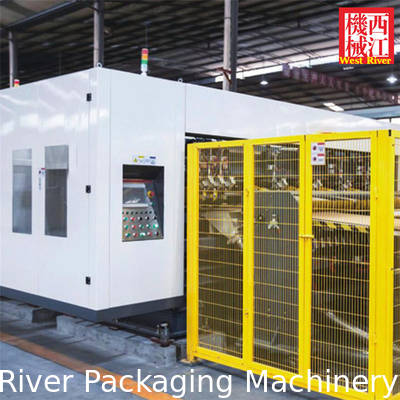

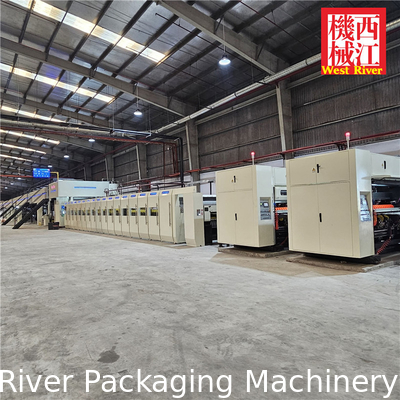

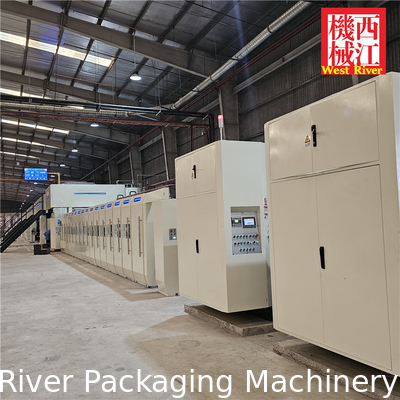

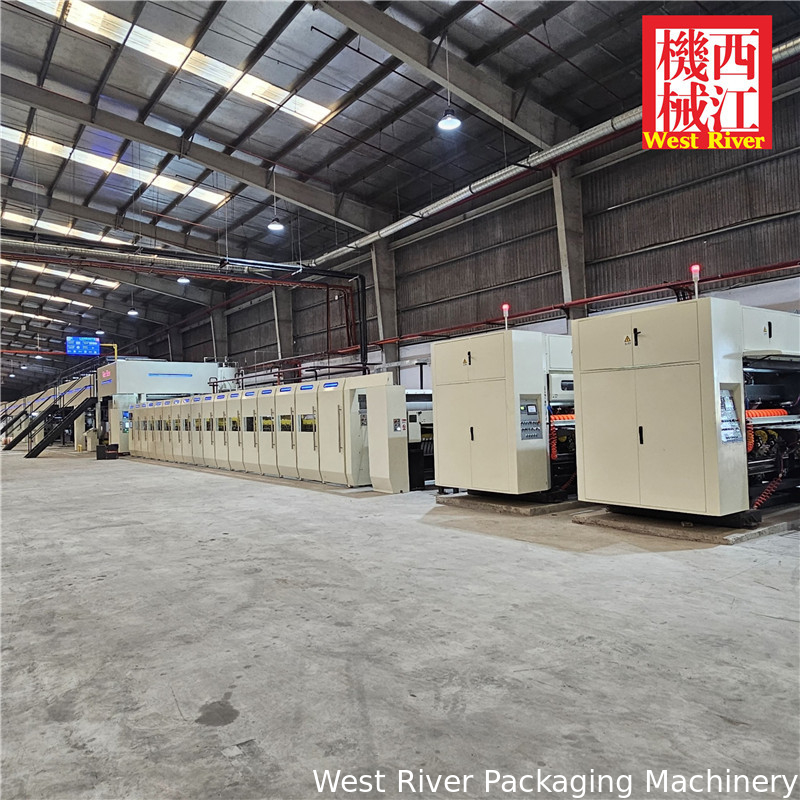

Thin Blade Slitter Scorer by Computer Controlled for Corrugated Cardboard Slitting
Features:
(1) Order arrangement: Automation
(2) Scoring type: One (male to flat)
(3) Minimum scoring width: 180 mm
(4) Scoring accuracy: +0.5mm
Change orders:1-3 seconds
(5) Scoring depth control: Manual
(6) Position control of suction port: electrical
(7) Pre scoring wheel and scoring wheel transmission: Passive
(8) Slitter knife drive motor: 5.5kW Frequency conversion control (Synchronized with Glue Machine)
(9) Machine movement adjustment: servo motor adjustment. Servo control. Equipped automatic tracing function.
II. Technical Description of Major Components

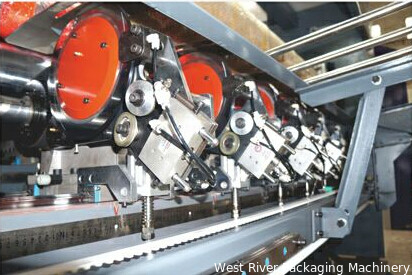

1. Scoring part
(1) Each group of scoring units are driven by an independent deceleration motor and positioned by computer control.
(2) It is equipped with pre-scoring line and press wheel, and has male to flat scoring type.
(3) Pneumatic lifting is adopted for each group of scoring wheels.
(4) Scoring wheel drive follows cardboard speed passively.
(5) The depth of the pre-scoring wheel and the scoring wheel is adjusted manually.
2. Guiding and Scoring Shaft
(1) The paper scoring shaft adopts pneumatic lifting.
(2) Manual or pneumatic control scoring when cardboard enters the slitting section.
(3) The guiding driver adopts 3.7kW frequency conversion control, synchronizing with the glue machine.
3. Slitting section:

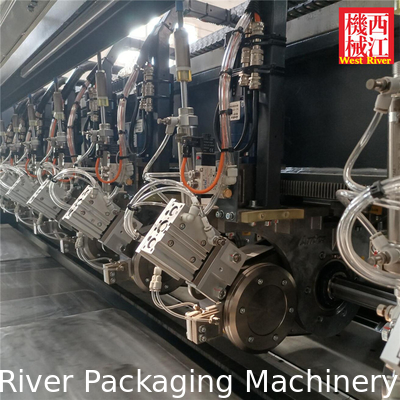

(1) Each group of thin blade slitter cutting unit is driven by an independent servo motor and positioned by computer control.
(2) Pneumatic lifting is used for each group of slitting cutters.
(3) Each group of slitting cutters are equipped with grinding cutter and cooling device.
(4) Slitter driver adopts 5.5kW frequency conversion control, manually or in proportion to the bonder.
(5) Steel knife comb is used as tool holder.
4. Adjustment of suction outlet
(1) The suction outlet is driven by a deceleration motor, and the electric control of positive or negative rotation.
5. Whole machine movement
(1) Servo motor drive, automatic tracing and slitting.
6. Electrical Control System
(1) The whole machine is operated by touch screen, controlled by PLC, driven by frequency converter, and order change motor is controlled by servo motor.
(2) Equipped with a control station to input orders and monitor, and provide an interface with the production management system Modbus RUT communication protocol.
(3) The pneumatic valve of the whole machine adopts Yadeke brand, and the cylinder adopts Zhaoqing production.
West River Chinese Best Quality Corrugated Equipment Supplier!
West River has been committed to the research and development of environmental protection cardboard packaging material production technology, and the concept of environmental protection and energy saving throughout the concept of product research and development, for the world environmental protection packaging has made its due contribution.
-Automatic temperature control technology to improve thermal efficiency,
-Automatic control technology to reduce roll paper waste, and reduce product waste rate and labor intensity,
-Special technology of West River to realize high strength cardboard production,
-Intelligent data management technology to realize intelligent manufacturing and the improvement production efficiency of workshop.
-Waterproof technology, the packaging for fruits, vegetables and seafood can be realized.
The production of high-efficiency, energy-saving, high-strength and high-quality cardboard products as well as green manufacturing. Reduce dust pollution, water pollution, noise pollution, land occupation area and achieve low energy consumption so as to achieve the ultimate goal of environmental protection.
